WITH LA525FL AND AFTERMARKET BACKHOE
Description

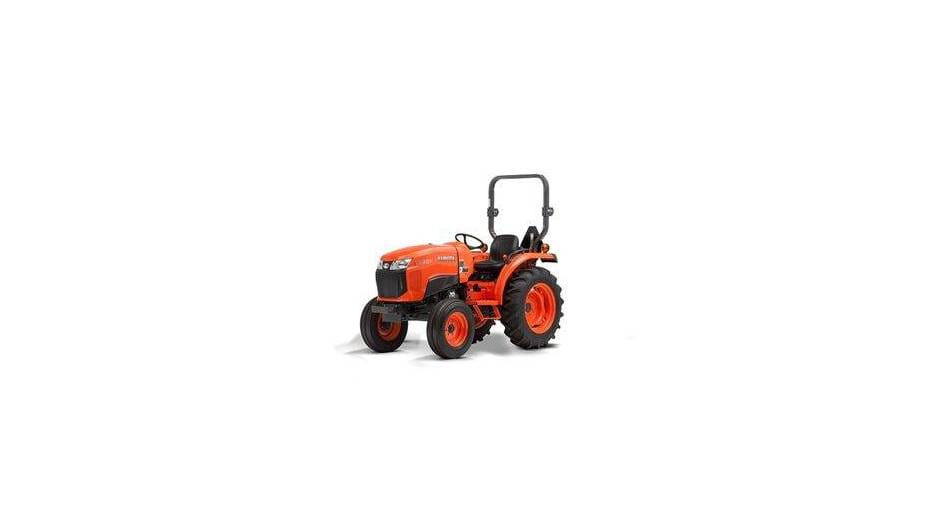

Dependable power, cleaner emissions and a bold new look define Kubota’s new L3301– featuring a Tier 4 Final emissions 33 HP Kubota diesel engine, improved ergonomics and much more.
Features
- Bevel Gear Front Axle (4WD Model) – A superior feature that delivers an extremely tight turning radius with full power transfer to the wheels at every steering angle.
- Choice of Tires – Tires designed for specific jobs allow the Standard L-Series tractors to perform even better. Select from Ag, Industrial, and Turf tire options.
- Conveniently Located PTO Lever (L3301 & L3901 Models) – The PTO lever is located to the right side of the operator’s seat (L3301 & L3901 HST models), or to the right side of the foot platform center cover (L3301 & L3901 gear models).
- Cup Holder – This convenient holder securely fits a cup or a mug to keep operators hydrated on the job.
- Gear Drive Transmission with Synchro-Shuttle (F and DT Models) – You’ll finish the big jobs easily with the mechanical Synchro-Shuttle Transmission featuring inline forward and reverse shifting for quick directional changes. The transmission offers 4 main-shift speeds and 2 range-shift speeds (Hi/Lo) for a total of 8 forward and 8 reverse speeds (8FX8R), enabling you to select the right speed for better productivity.
- HST Transmission (L3301HST & L3901HST) – The HST transmission provides infinite speed control with the HST pedal that can be operated simply by pressing down on the pedal. The more the pedal is pressed, the faster the wheels go. An inline shifting pattern enables easy range shifting between low, medium and high. Cruise Control is optional on these models. When installed the cruise lever is conveniently located on the left side of the operator’s seat for easy access.
- Large Capacity Fuel Tank – The L3301 and L3901 models feature an ample 11.1 gallon fuel tank. The L4701 models feature a 13.5 gallon fuel tank. Operate longer between fill ups with the large capacity fuel tank on the Standard L-Series.
- Live Continuous-Running PTO (L3301 & L3901 Models) – The L3301/L3901 HST models and the L3901 gear-drive models include a live, continuous-running rear PTO for easier operation. The HST models also feature an over-running clutch on the PTO shaft to protect the transmission. Finally, a stationary PTO feature allows the use of various implements such as pumps.
- More power, cleaner emissions and a bold new look position the new Standard L-series tractors at the top of their class.The Standard L-Series has not only improved performance but also feature a revamped design with smooth, rounded contours from front to rear that improve visibility so you can get the job done faster and with ease in the comfort of the New Standard L-Series Tractors.
- New Dash Panel – The dash panel features large gauges and a digital LCD panel that provides vital information including engine error codes. Parking Brake and Diesel Particulate Filter (DPF) indicators have been added to the dash panel.
- New Powerful, Clean Engines – Known for their reliability and power, Kubota diesel engines generate outstanding horsepower, yet are more fuel-efficient and cleaner burning thanks to the Common Rail System (CRS) with electronic controlled direct fuel injection. The engines with the latest EPA Tier 4 Final emission regulations.
- New Seat – The adjustable suspension system offers a high level of comfort. The seat is contoured and ergonomically designed to reduce fatigue when working long days. A drain hole has been added to allow water to escape so it does not accumulate on the seat.
- One Piece Hood – The Standard L-Series sleek slanted hood provides a great field of vision. The one piece hood can be fully opened with the assistance of a gas strut for easier access to the engine and other maintenance items.
- Roll-Over Protective Structure (ROPS) – For maximum protection, all models come with a foldable ROPS and a retractable seat belt as standard equipment.
- Tool Box – A large tool box is located right behind the operator’s seat for easy access. Models with the backhoe will have the tool box above the left fender, next to the operator’s seat.
- 3-Point Hitch – The large capacity hydraulic pump and cylinder provide powerful lifting capacity, allowing you to use a wider range of implements. Telescoping Stabilizers are option on the L3301 & L3901 models and standard equipment on the L4701 models.
Engine
- Cylinders: 3
- Displacement: 111.4 cu.in.
- Emission: Tier 4 Final
- Engine: Kubota
- Fuel Capacity: 11.1 gal
- Horsepower: Gross – 33.0 HP ; Net – 31.4 HP ; PTO – 26.2 HP
- RPM: 2700
- Transmission: HST
Chassis
- Axle: Front Axle Capacity – 2865 lb. ; Rear Axle Capacity – 2865 lb.
- Brake: Multiple Wet, Disc
- Steering: 63.3 in. power steering
- Tires: Farm Front – 7 – 16 ; Farm Rear – 11.2-24 ; Turf Front – 23 x 8.50 – 12 ; Turf Rear – 13.6 – 16 ; R4 Front – 27 x 8.50-15 ; R4 Rear – 15 – 19.5
- Turning Radius: Min. 8.2 in. w/ brake
Dimensions
- Ground Clearance: Min. 13.4 in
- Overall Height: 91.7 in. (w/ ROPS)
- Overall Length: 116.3 in.(w/ 3PT.)
- Overall Width: 55.1 in. (min. tread)
- Weight: 2,734 lbs (w/ROPS)
- Wheelbase: Integral Power Steering
General Information
- 3-Point Hitch: lift capacity @ 24″ behind lift point – 1435
- Air Cleaner: Single Element
- Clutch: Live PTO with overrunning clutch
- Flow: P/S 4.1 + Implement 6.8 = 10.9 gpm
- Travel Speed: 3-Range ; 14.1 mph
- Tread: Front R1 – 43.1″ ; Rear R1 – 43.8″ – 47.1″ – 50.8″
Power Take-off (pto)
- PTO Speed: 540 @ 2580 RPM
