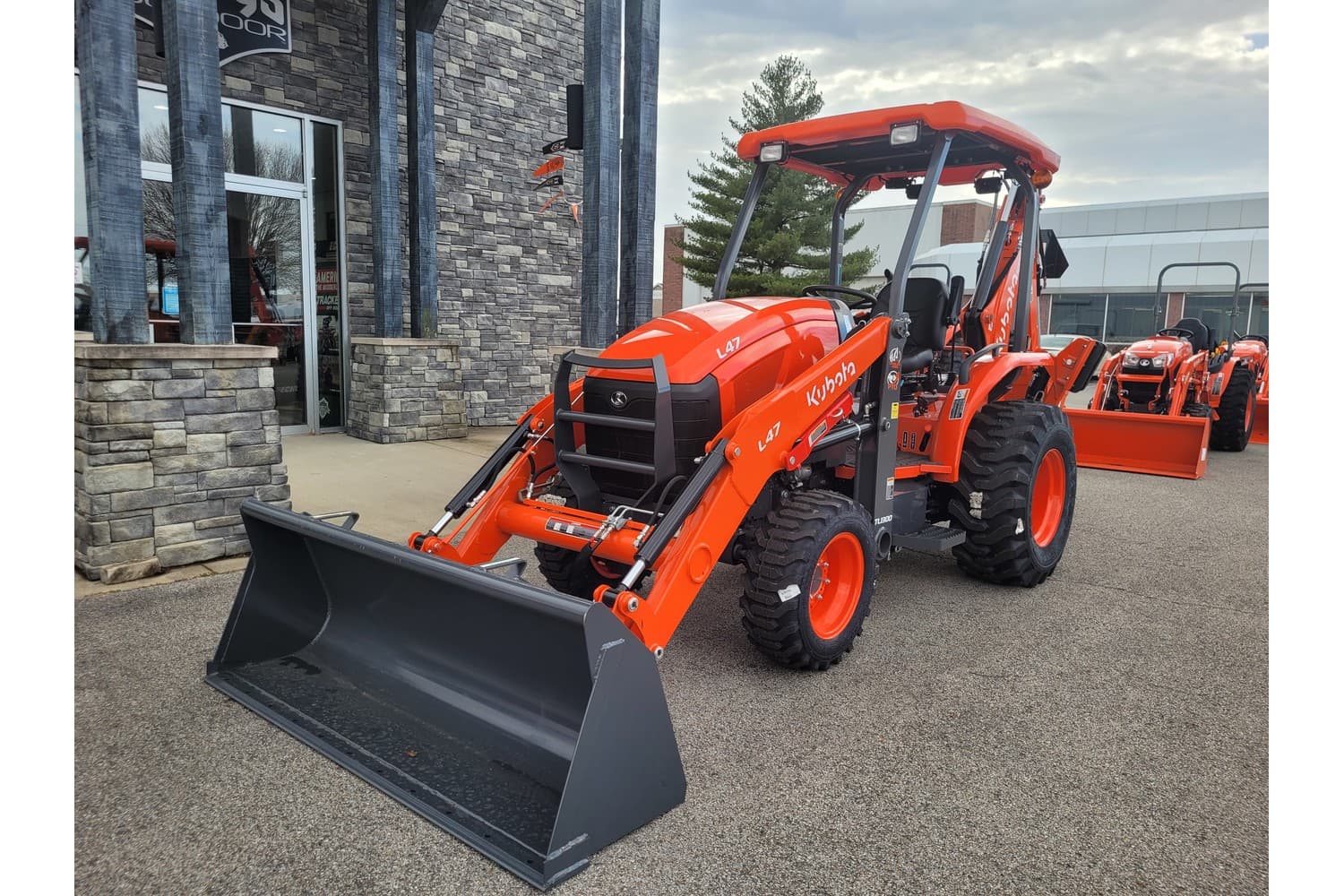

2024 Kubota L47

With Tier 4 Final 47.1 gross HP, 2,848 lbs. of lift capacity and 121 in. max digging depth, this compact, high-performance tractor/loader/backhoe model is ideal for independent contractors, landscapers, rental services and anyone looking to add power, speed and efficiency to their worksite.

Features

• Headlights/work Lights: We’ve installed headlights and work lights to the canopy and ROPS respectively. The height of the headlights provides greater ground coverage during night work. The rear-mounted work lights shine brightly for backhoe or 3-point hitch work.
• Independent Pto: The independent PTO keeps stopping to a minimum. With this handy feature, you can stay productive by engaging and disengaging the rear PTO without ever having to stop the tractor.
• Four Wheel Drive: Combined with the differential lock for the front axle, the standard 4WD ensures virtually unstoppable performance under difficult conditions or on varying terrain.
• 3-point Hitch: To give you the ability to take on bigger jobs, the lifting capacity will allow you to attach a wider variety of implements and larger implements, making you more productive.
• Slanted Hood Design: The slanted boom and hood of the Kubota TLB improves visibility over the hood. This helps you change attachments and get back to work quickly; it also allows increased productivity in tight areas.
• Integrated Main Frame: The reinforced integrated main frame on the TLB series is performance matched to the loader and backhoe. This means that the structural integrity of the tractor is uncompromisingly sound and built to take on the stresses of repetitive loader and backhoe work.
• Engine: Tackle the toughest jobs with the confidence of Kubota’s high power, high torque rise, low noise, low vibration and cleaner Tier 4 emissions. Easy to start on cold mornings, this high output, liquid-cooled engine will prove both dependable and durable for years to come.
• Engine

• Non-Road Emmission Standard: EPA Final Tier 4
• Gross Power (97/68/EC): 47.1 HP (35.1 kW)
• Net Power (ECE-R24): 44.7 HP (33.3 kW)
• Total Displacement: 148.5 cu. in. (2434 cc)
• No. of Cylinders: 4
• Rated Speeds: 2700 RPM
• Air Cleaner: Dual Element
• Max PTO Power: 33.0 HP (24.6 kW)

Dimensions and Weight

• Fuel Tank Capacity: 17.7 gal (67 L)
• Front Tire Size: 27 x 10.5 – 15R4
• Rear Tire Size: 15 – 19.5 R4
• Wheelbase: 72.5 in. (1841 mm)
• Front Tread: 45.9 in. (1165 mm)
• Rear Tread: 56.1 in. (1426 mm)
• Weight (with loader, backhoe and ROPS / FOPS): 7205 lb. (3286 kg.)
• Minimum Turning Radius: 9.2 ft. (2.8 m)

PTO

• Rear PTO: 540 RPM, Independent

Transmission

• Type: HST Plus (6 Range)
• No. of Speeds: Infinite
• Max Traveling Speed: 14.0 mph (22.5 km/h)
• Range Shift Lever Position: Seat Side, Right

Brake Type

• Brake Type: Wet Disc

Hydraulics

• Pump Capacity: 25.0 gpm (94.9 l/min)
• 3 – Point Hitch Capacity 24″ (610 mm) Behind LP: 2756 lb. (1250 kg.)
• Position Control: Standard
• 3 – Point Hitch (Category I): Optional
• Power Steering: Hydrostatic

Other Specifications

• ROPS / FOPS (Mets OSHA 1926 1001/1003, ISO3471): 4 Post, Standard
• Hard Nose Slanted Hood: Standard
• Loader-Integrated Reinforced Frame: Standard
• Horn: Standard
• Tilt Steering: Standard
• Deck: Walk-Trough Deck
• Glow Plug: Super Glow
• Back-Up Alarm: Standard
• Rear Axle Differential Lock: Standard
• Reversible Seat: Standard

L47 TL1300 Loader Specifications

• Lift Capacity to Max Heigth at Bucket Bottom, Mid Point: 2848 lb.(1292 kg.)
• Breakouot Force at Pivot Point: 4531 lb. (20153 N)
• Control Valve: One Detent Foat Position Power Beyond Circuit Hydraulic SelfLeveling Valve
• Net Weight (Approx.): 940 lb. (435 kg.)
• Auto-Leveling Mechanism: Standard, Hydraulic
• 2 lever Quick coupler: Standard
• Maximum Lift Height to Pivot Pin: 113.9 in. (2893 mm)
• Clearance with Bucket Dumped: 90.0 in. (2287 mm)
• Reach at Maximum Heigth: 16.6 in. (422 mm)
• Maximum dump Angle: 44 deg.
• Reach with Bucket on Ground: 68.5 in. (1739 mm)
• Bucket Rollback Angle: 48 deg.
• Digging Depth: 3.5 in. (89 mm)
• Overall Heigth in Carriying Position: 55.2 in. (1402 mm)
• Raise to Feull Heigth (No Load): (Self Leveling On): 3.6 sec.; (Self Leveling Off): 3.2 sec.
• Lowering Time (No Load): (Self Leveling On): 5.8 sec.; (Self Leveling Off): 2.9 sec.
• Attachment Rollback Time (No Load): (Self Leveling On): 1.9 sec.; (Self Leveling Off): 1.9 sec.
• Attachment Dumping Time (No Load): (Self Leveling On): 2.2 sec.; (Self Leveling Off): 2.2 sec.
• 3rd Function Valves: Optional, 11.5 gpm

L47 BT1000B Backhoe Specifications

• Digging Bucket Using Bucket Cylinder (Approx.): 5825 lb. (25892 N)
• Digging Bucket Using Dipperstick Cylinder (Approx.): 3779 lb. (16797 N)
• Trunnion Type Boom Swing Mechanism: 2 Cylinders
• Net Weigth (Approx.): 1660 lb. (753 kg.)
• Transport Heigth: 106.3 in. (2700 mm)
• Stabilizer Spread Transport: 67.2 in. (1707 mm)
• Ground Clearance: 12.3 in. (312 mm)
• Overall Width: 71.2 in. (1809 mm)
• Digging Depth, Maximum: 121.0 in. (3073 mm)
• Digging Depth, 2 ft. Flat Bottom: 120.0 in. (3048 mm)
• Digging Depth, 8 ft. Flat Bottom: 102.2 in. (2596 mm)
• Operating Heigth, Fully Raised: 157.2 in. (3993 mm)
• Loading Heigth: 92.9 in. (2359 mm)
• Loading Reach: 54.6 in. (1386 mm)
• Reach from Swing Pivot: 160.9 in. (4087 mm)
• Swing Pivot to Rear Axle Center Line: 38.0 in. (965 mm)
• Bucket Rotation: 180 deg.
• Swing Arc: 180 deg.
• Stabilizer-Spread Operating: 89.3 in. (2268 mm)
• Angle of Departure per SAE J1234: 19.2 deg.
• Leveling Angle: 10.0 deg.
• Auxiliary Hydraulic Valve: Optional, 11.5 gpm

NOTES:

Kubota tractor Corporation reserves the right to change the stated specifications without notice.

Some items shown may be optional and some products shown may not be available at all dealerships.

Weigth Specification estimated with round back loader bucket, 18″ backhoe bucket and standard tires

Pump Capacity specification as follows: 11.8 gpm for backhoe boom swing, 6.6 gpm for power steering.

Engine Displacement specification estimated with brake.

Loader specifications estimated with 27 x 10.5 15R4 front tires, 15 – 19.5R4 rear tires.

Backhoe specifications estimated with 27 x 10.5 15R4 front tires, 15 – 19.5R4 rear tires, and L47 tractor.
